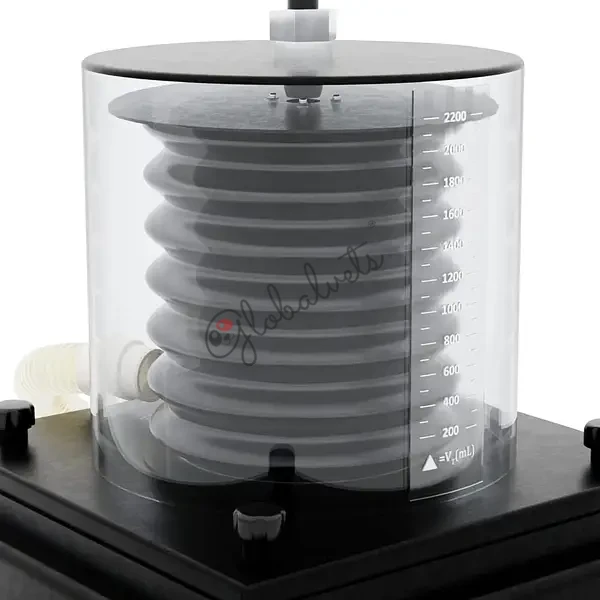

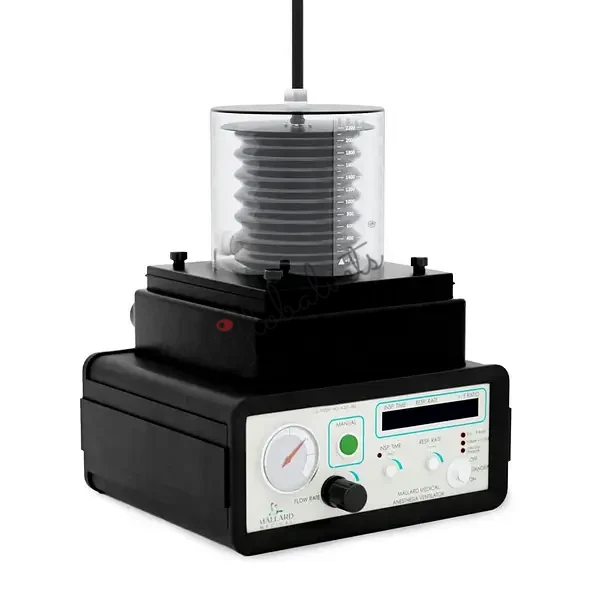

Mallard, MRI conditional ventilator for small animal
Inverted bellows, ascending during exhalation as used in human anesthesia ventilatorsFlow rate adjustable from 0- 120 Liters per minute with expanded range of flow rate selectivityMicroprocessor Based VentilatorRobust LCD DisplayCompatible with Most Anesthesia SystemsEnhance the administration of inhalation anesthesiaEssential for extended surgeries or patients with compromised lung function required for cleaningM.R.I. conditional (No electric, purely pneumatic / air powered)
Need Expert Advice?
Call us: +91 9811520889
Technical Specifications
Classification
A microprocessor based, electronic, time cycled, pressure limited, anesthesia ventilator
Bellows Orientation
Ascending
Volume
- Selectable – 200 – 2,200ml
- Optional: Pediatric Bellows Optional 50 – 300ml
- Optional: Expanded Bellows – 200 – 3,000ml
Controls
- Inspiratory Time – .1 to .3 seconds
- Inspiratory Flow – 1 – 120 LPM
- Inspiratory Pressure Rate – 10 – 80cm H20
- Rate – 2 – 80 BPM
- Pneumatic Manual Push
- Button for Inspiration
LED Display
- Inspiratory Time Indicator
- Rate (BPM)
- I:E Ratio
Alarms and Alerts
- Failure to Cycle – Visual Audible Alarm
- Low Gas Pressure Failure – Visual Audible Alarm
- Power Failure – Visual Audible Alarm
Safety System
Overpressure Governor 80cm H20 (adjustable)
Gas Scavenger
19mm port
Size & Weight
- 12” Width (30 cm) x 11” Depth (28 cm) x 16” Height (41 cm)
- 10 lbs. (4.5 kg)
